Product Description

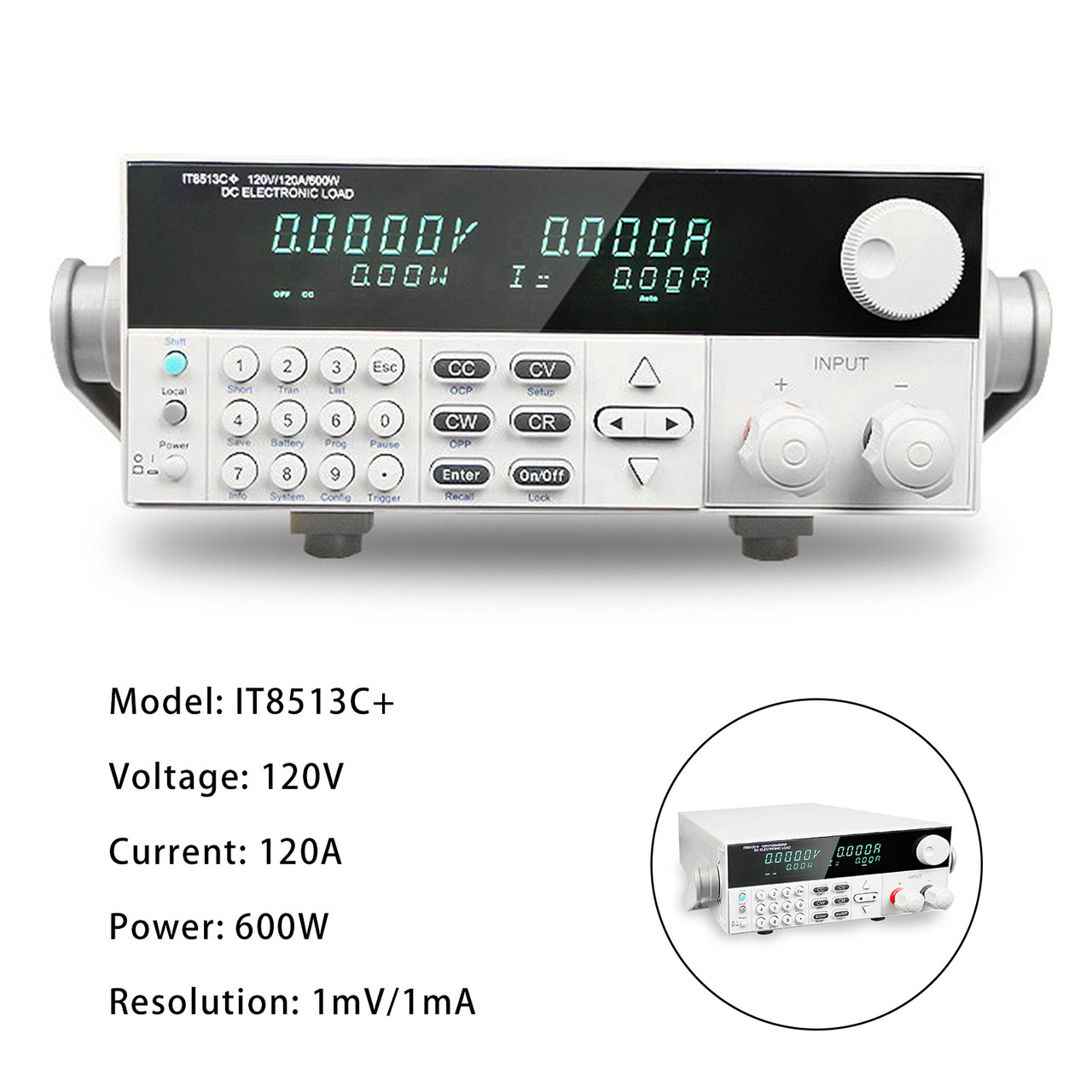

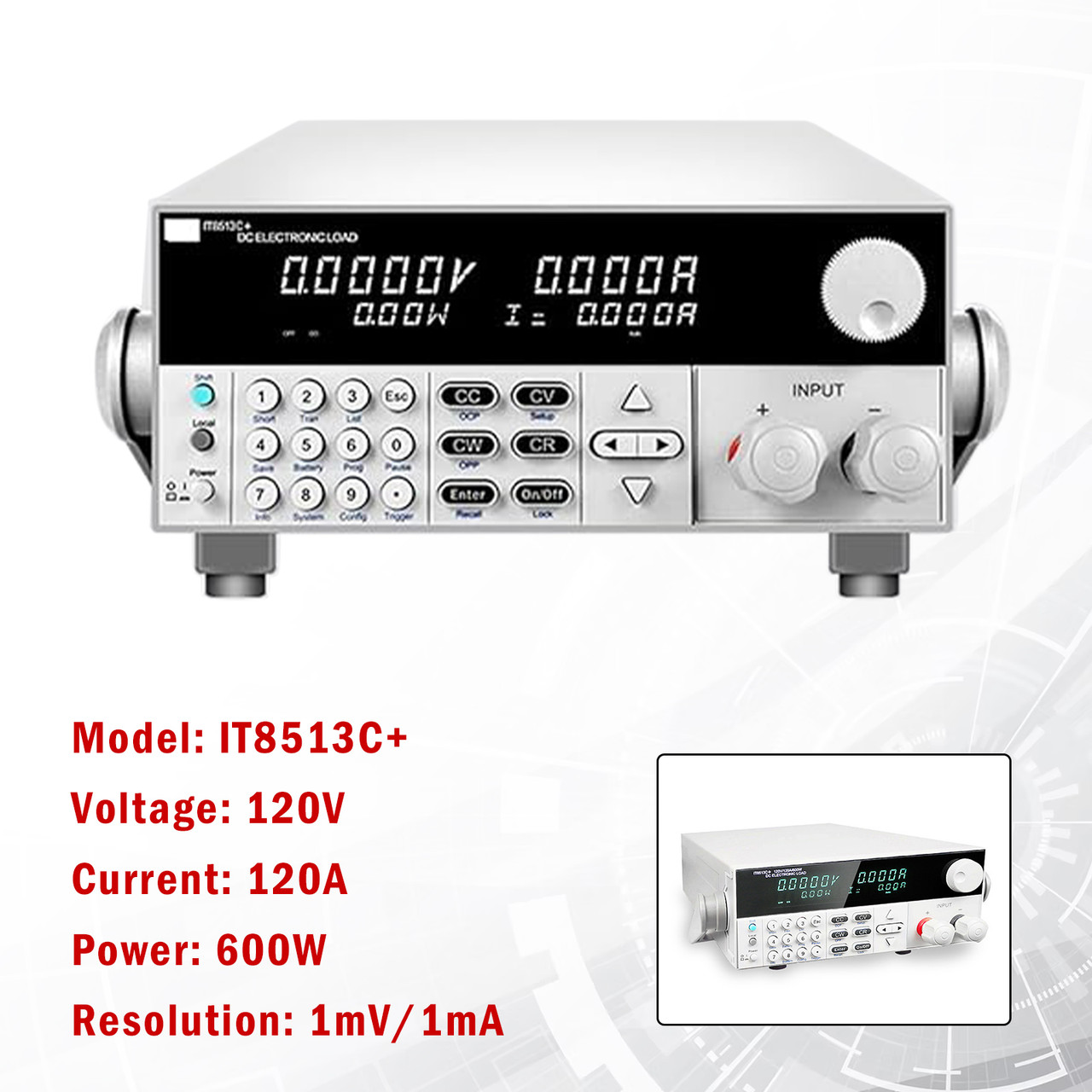

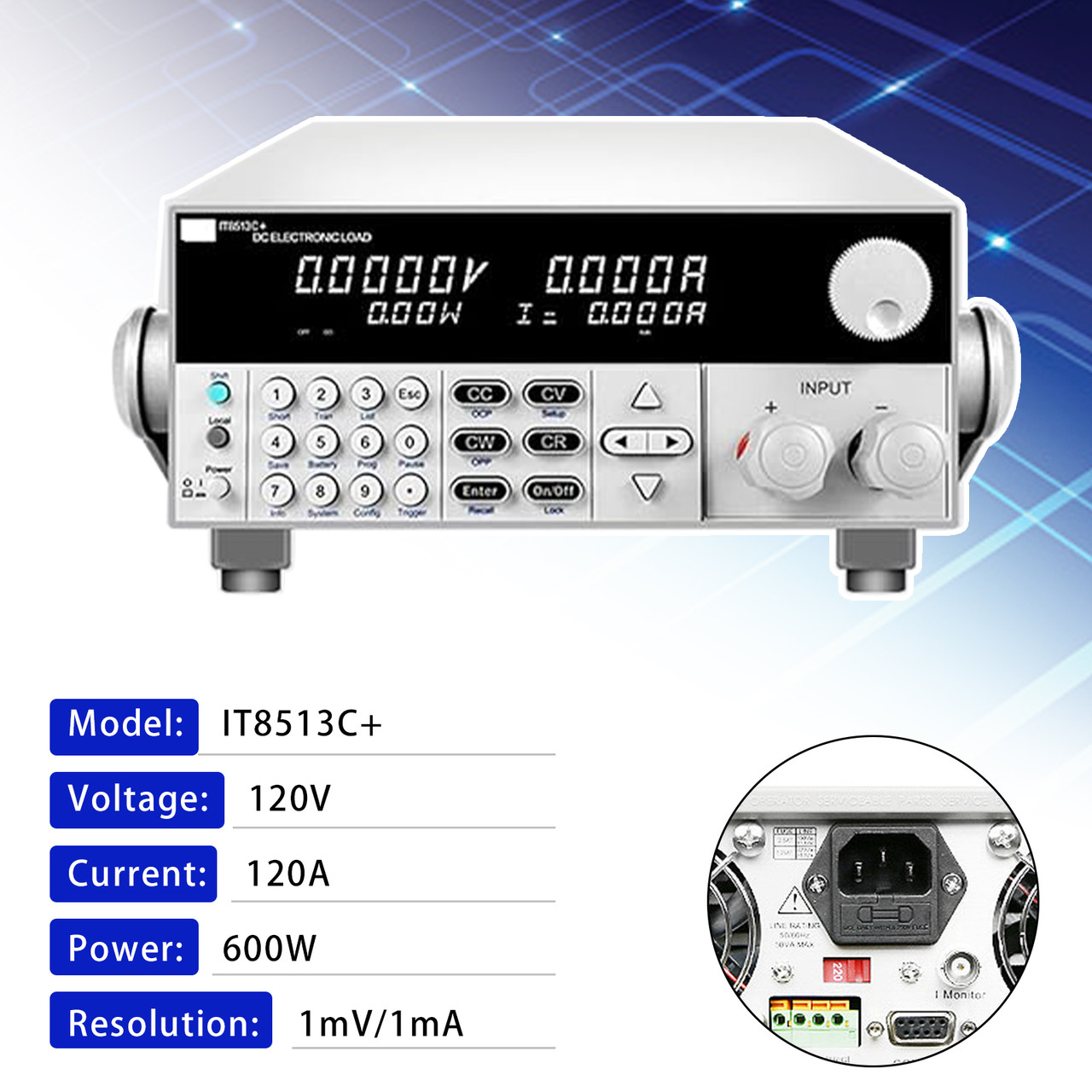

IT8513C+ 600W 120V 120A Programmable Electronic Load Battery TestFeature:
1: CC/CV/CR/CW operating modes.
2: high resolution of 0.1 mV and 0.1 mA.
3: Up to 40KHZ measurement speed of voltage and current.
4: Adjustable slew rate in CC mode.
5: Automatic test function.
6: 100 memory areas to save/recall setting parameters.
7: OVP/OCP/OPP/OTP and reverse voltage protection.
8: Bright VFD display.
9: Transient mode up to 10 kHz.
10: List mode? minimum 50us step width with 84 user programmable steps.
11: Professional battery mode.
12: Short mode.
13: OCP and OPP mode to test the over current and over power points.
Specifics:
Condition: 100% Brand New
Type: Electronic Load
Model: IT8513C+
Voltage: 120V
Current: 120A
Power: 600W
Resolution: 1mV/1mA
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.
Package Included:
1 X Electronic Load
