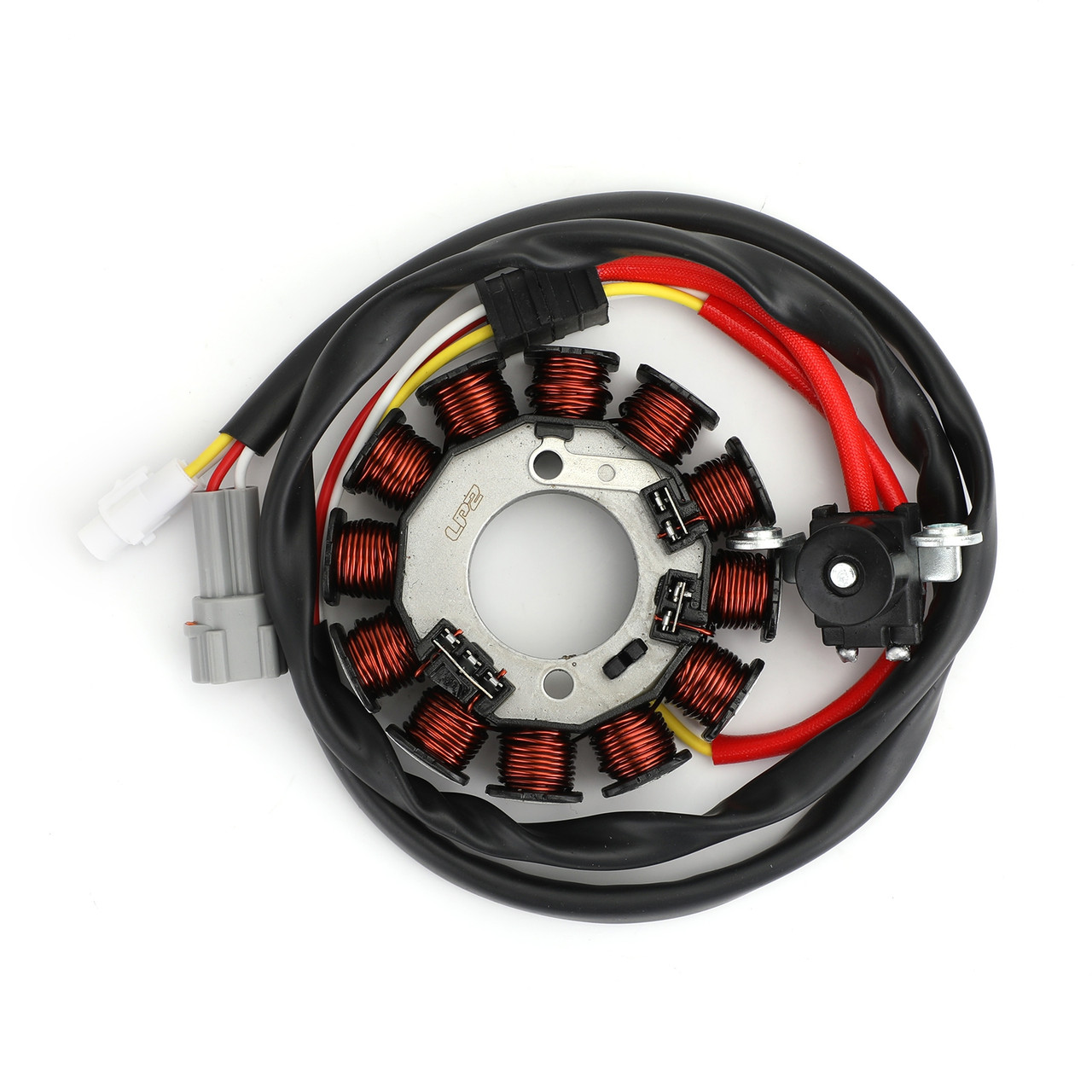

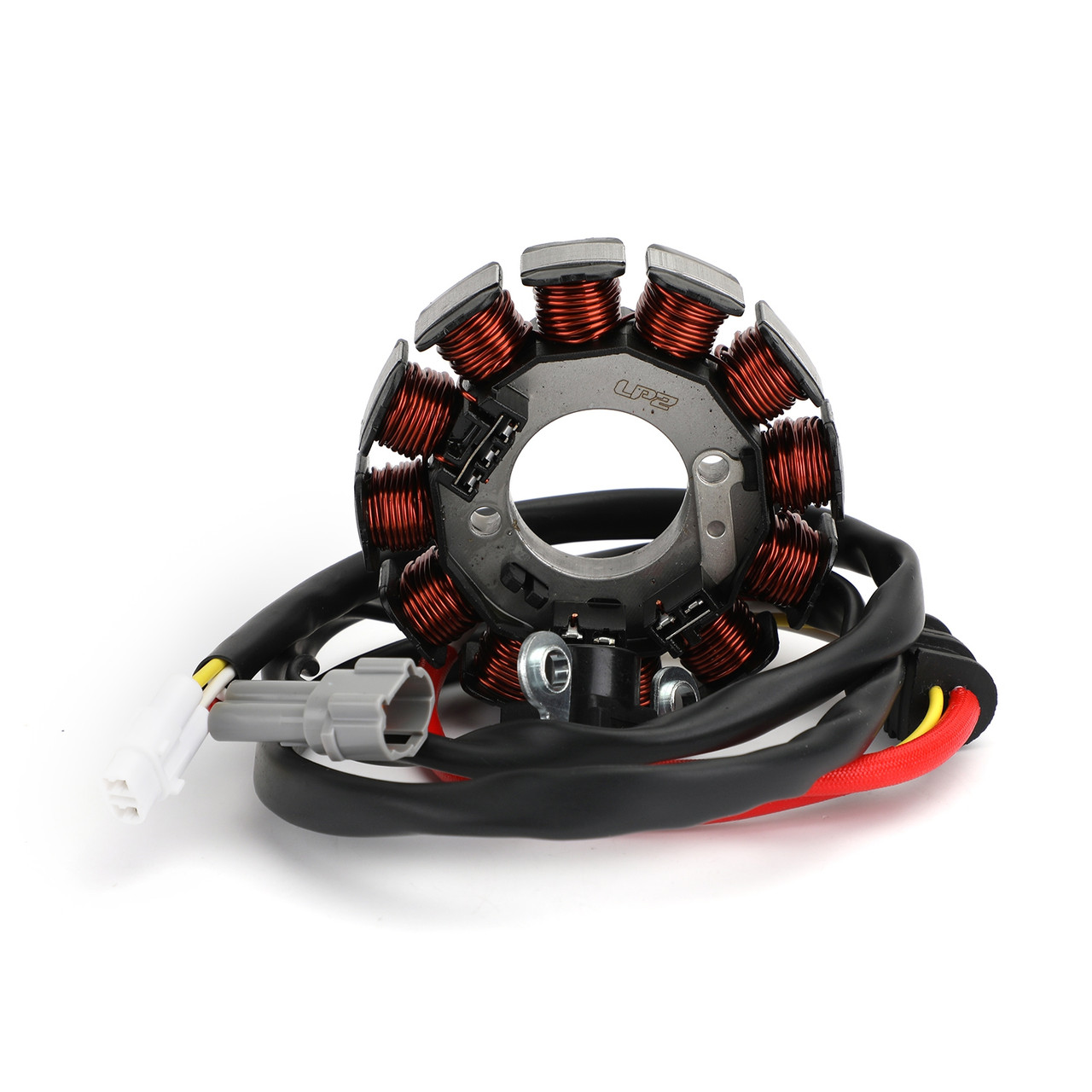

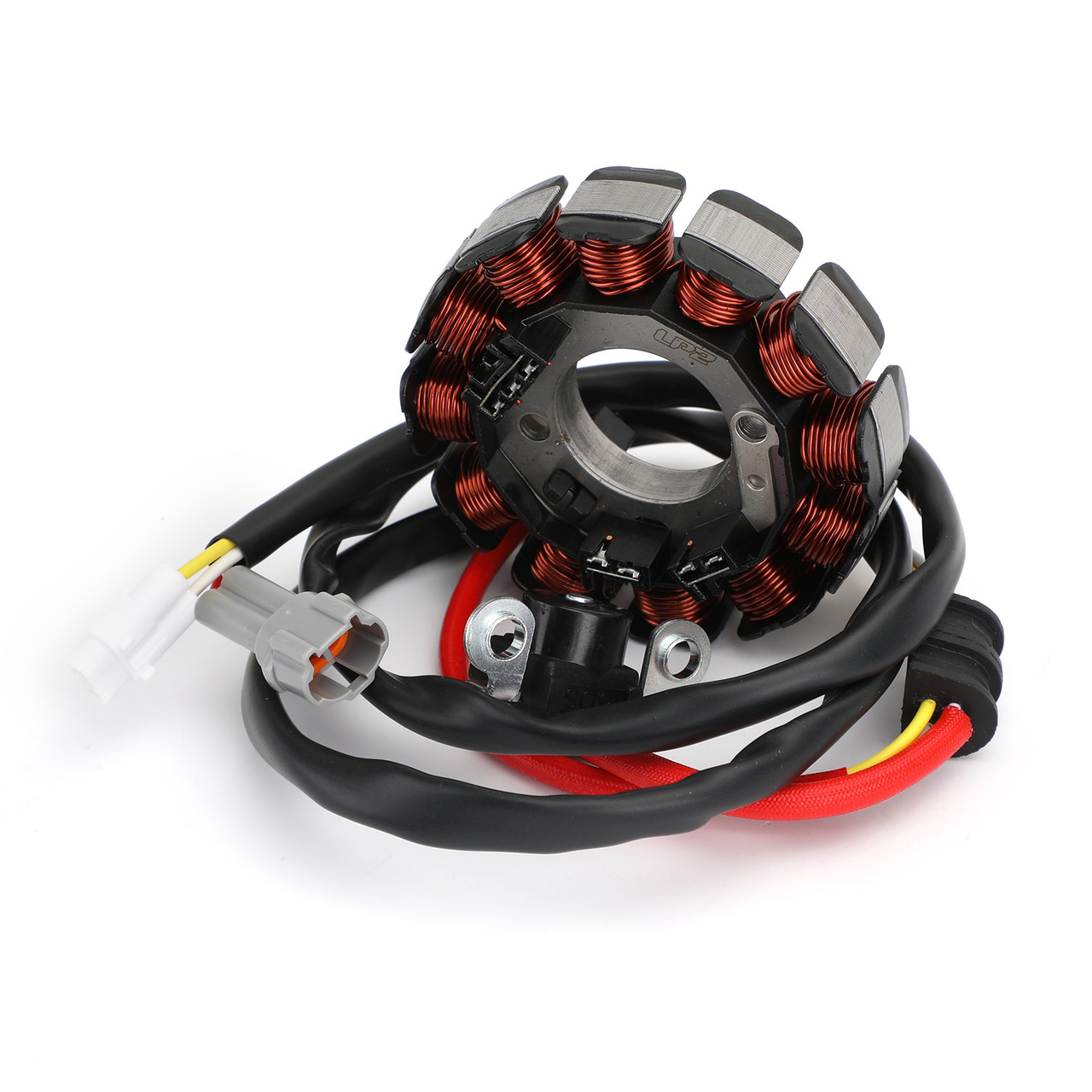

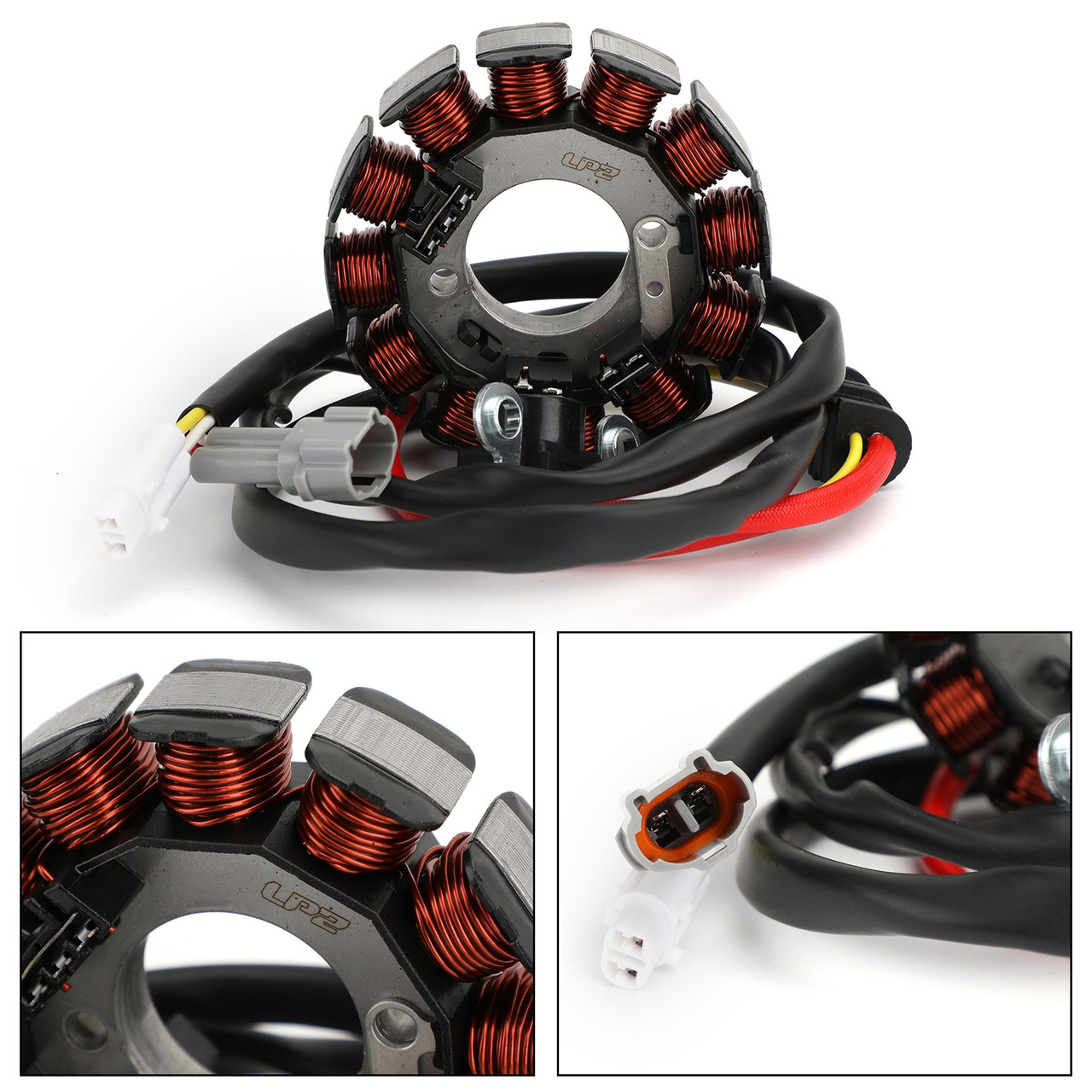

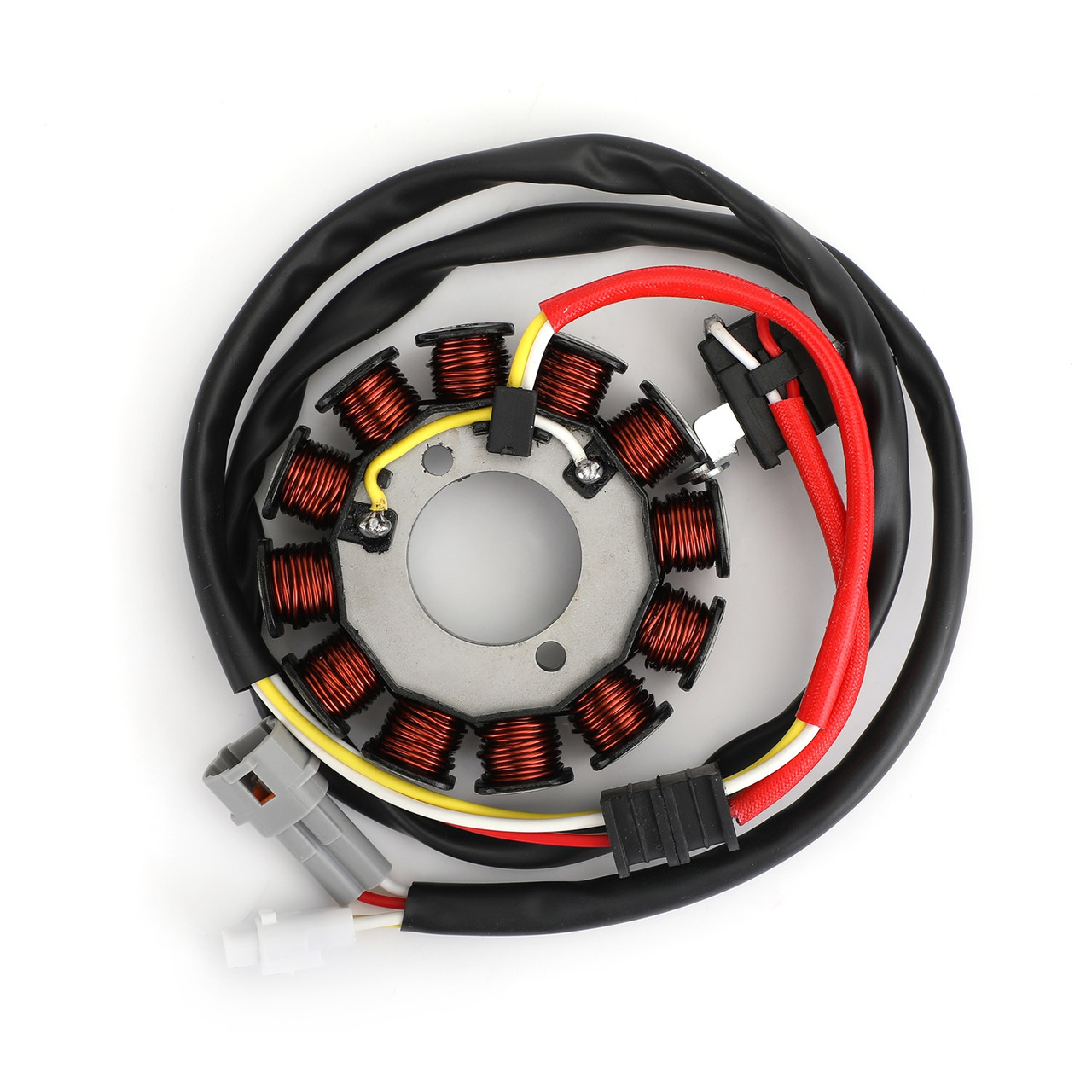

Magneto Generator Engine Stator Coil Fit For Yamaha YFZ450R 2004-2008
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
All products shipped are tested.
Condition: Aftermarket 100% Brand New
Type: Generator Stator Coil

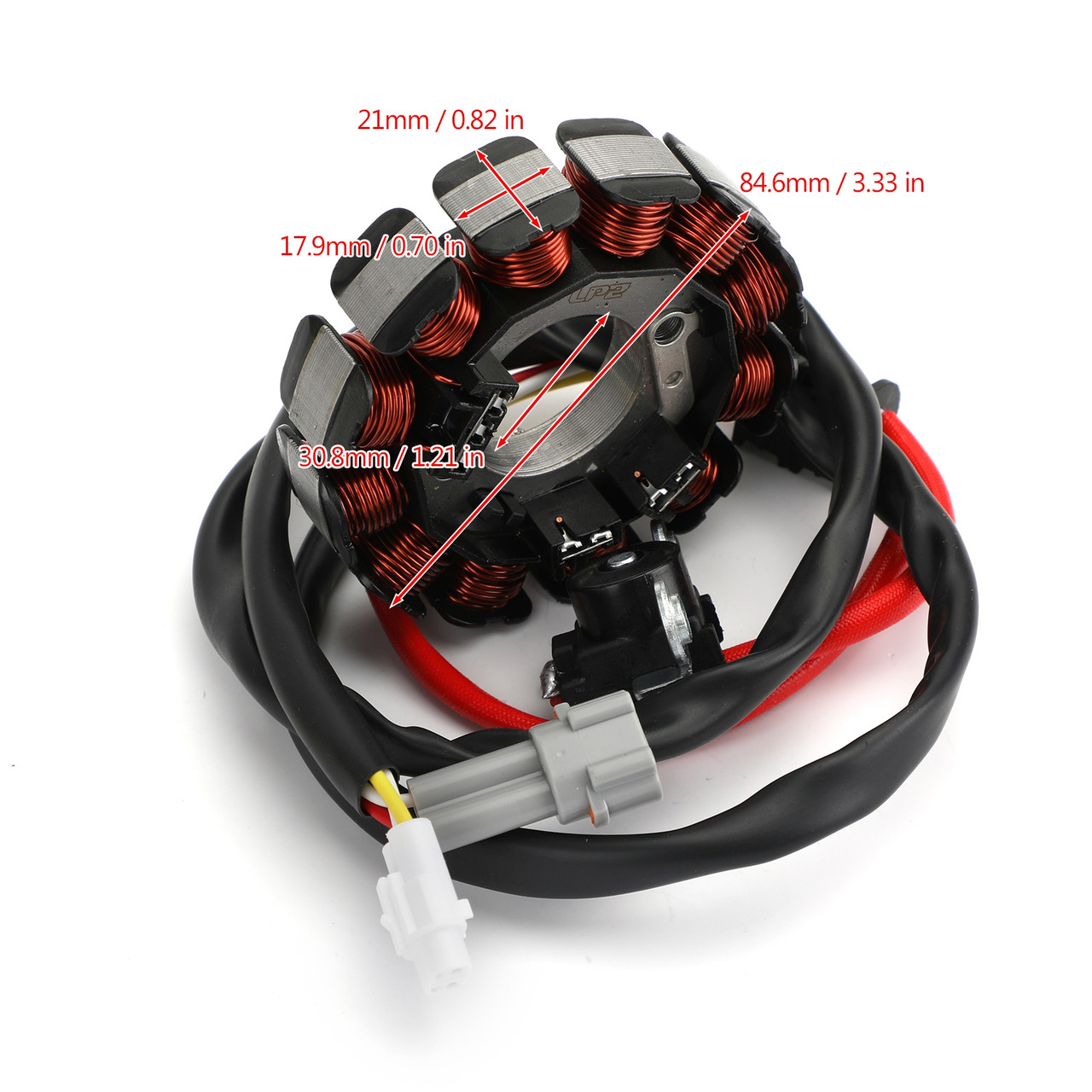

Interior diameter : 30.8mm / 1.21 inches
Exterior diameter : 84.6mm / 3.33 inches
Pole's Thickness : 21mm / 0.82 inches
Pole's Width : 17.9mm / 0.70 inches
Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 2
Number of fixation holes: 2
Number of poles: 12
REPLACEMENT PART NUMBER: 5TG-81410-00,5TG-81410-01,5TG-81410-02,5TG-81410-03,5TG-81410-10
Fits Yamaha YFZ450R 2004-2008
Fits Yamaha YFZ450 YFZ450R Limited Edition 2004
Fits Yamaha YFZ450 YFZ450R Special Edition 2005-2008
Fits Yamaha YFZ450 YFZ450R Special Edition 2 2007-2008
Fits Yamaha YFZ450 YFZ450X Special Edition 2007-2008
1x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
