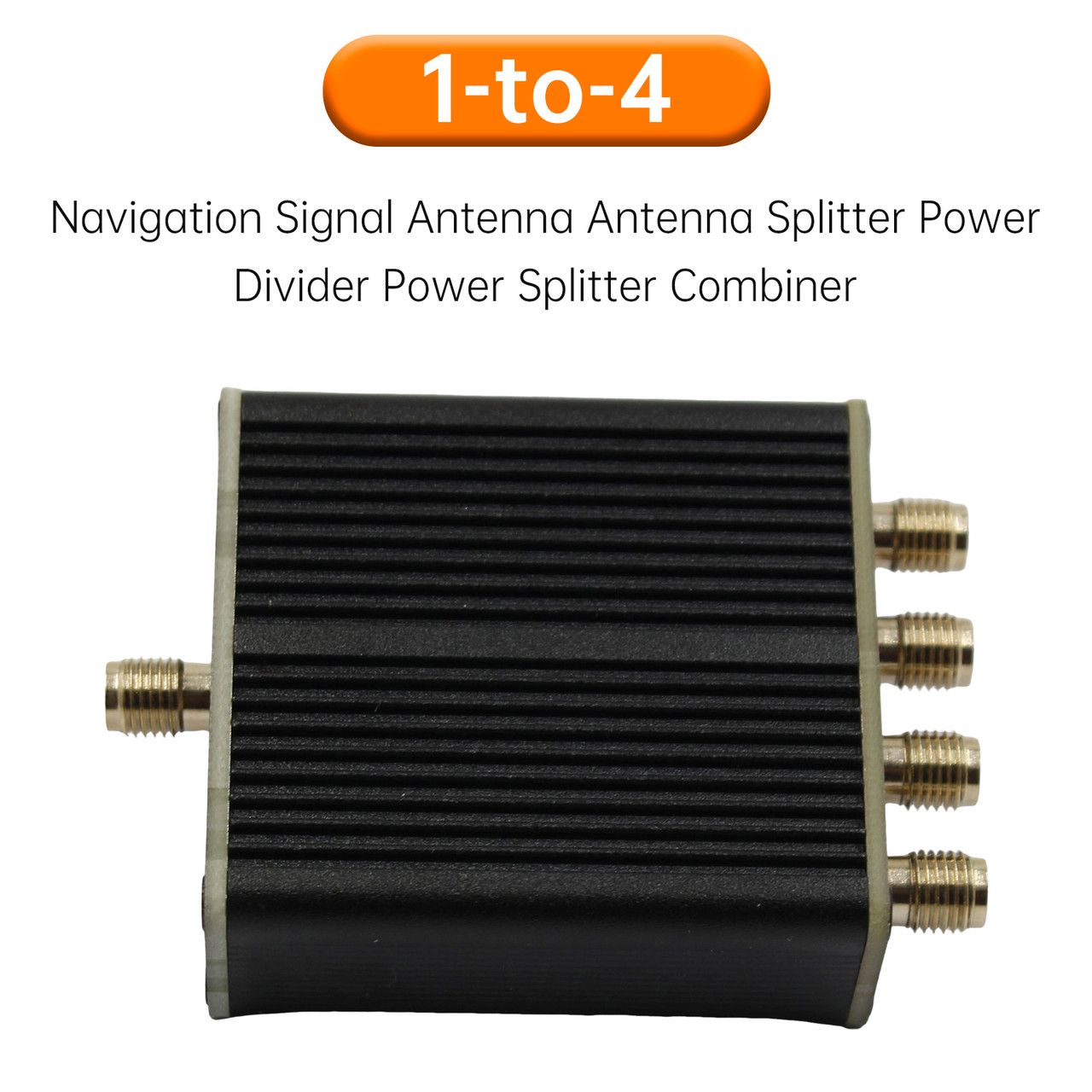

GPS GLONASS 1-to-4 Navigation Signal Antenna Antenna Splitter Power Divider Power Splitter Combiner
Description:
A 1-to-4 navigation signal splitter/combiner is a device that splits the energy of one input signal into two or more outputs of equal or unequal energy; conversely, it can combine multiple signal energies into one output, in which case it is also called a combiner. A certain degree of isolation must be maintained between the output ports of a power splitter. It features a wide operating frequency range, low insertion loss, high gain and isolation, and stable performance.

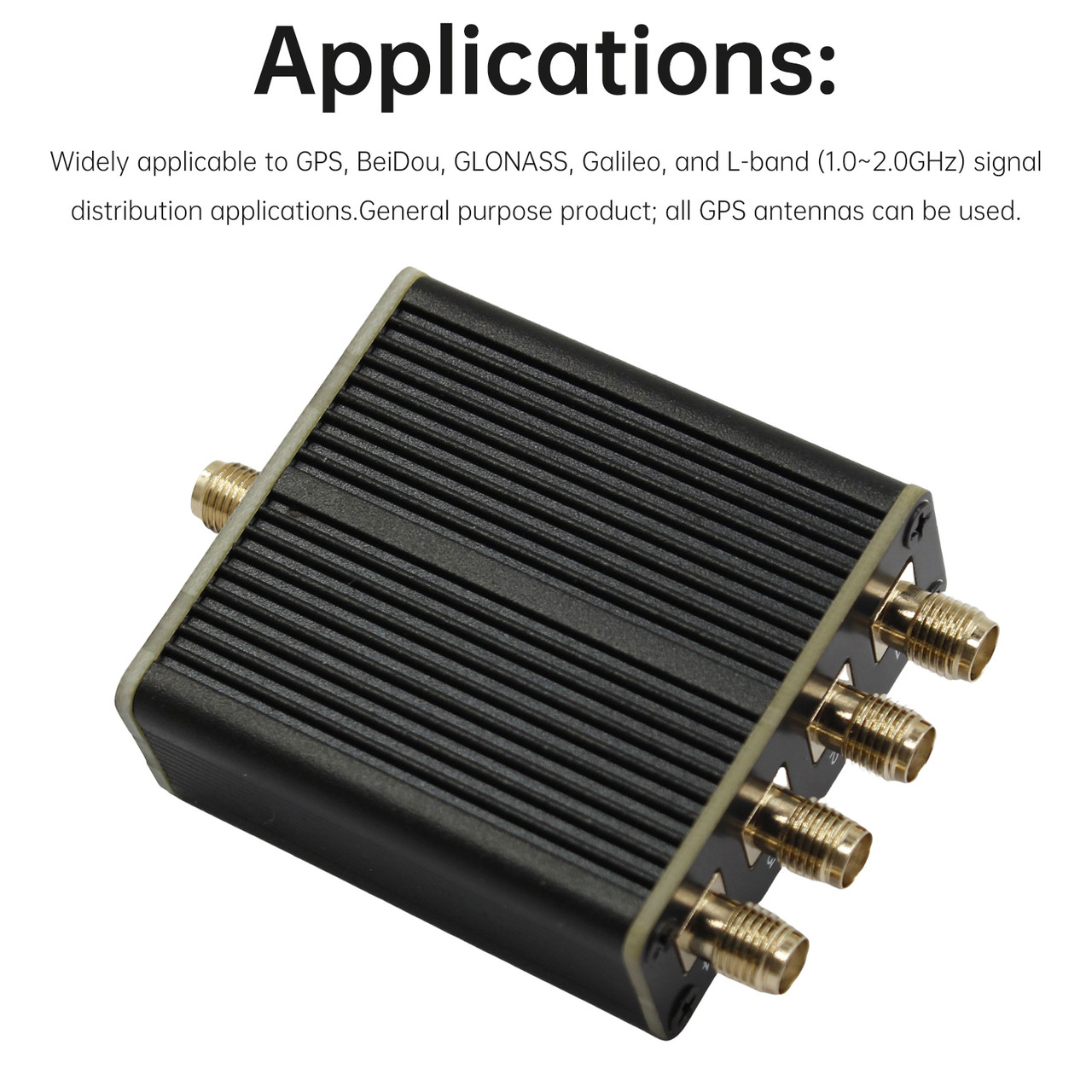

Applications:
Widely applicable to GPS, BeiDou, GLONASS, Galileo, and L-band (1.0~2.0GHz) signal distribution applications.General purpose product; all GPS antennas can be used.

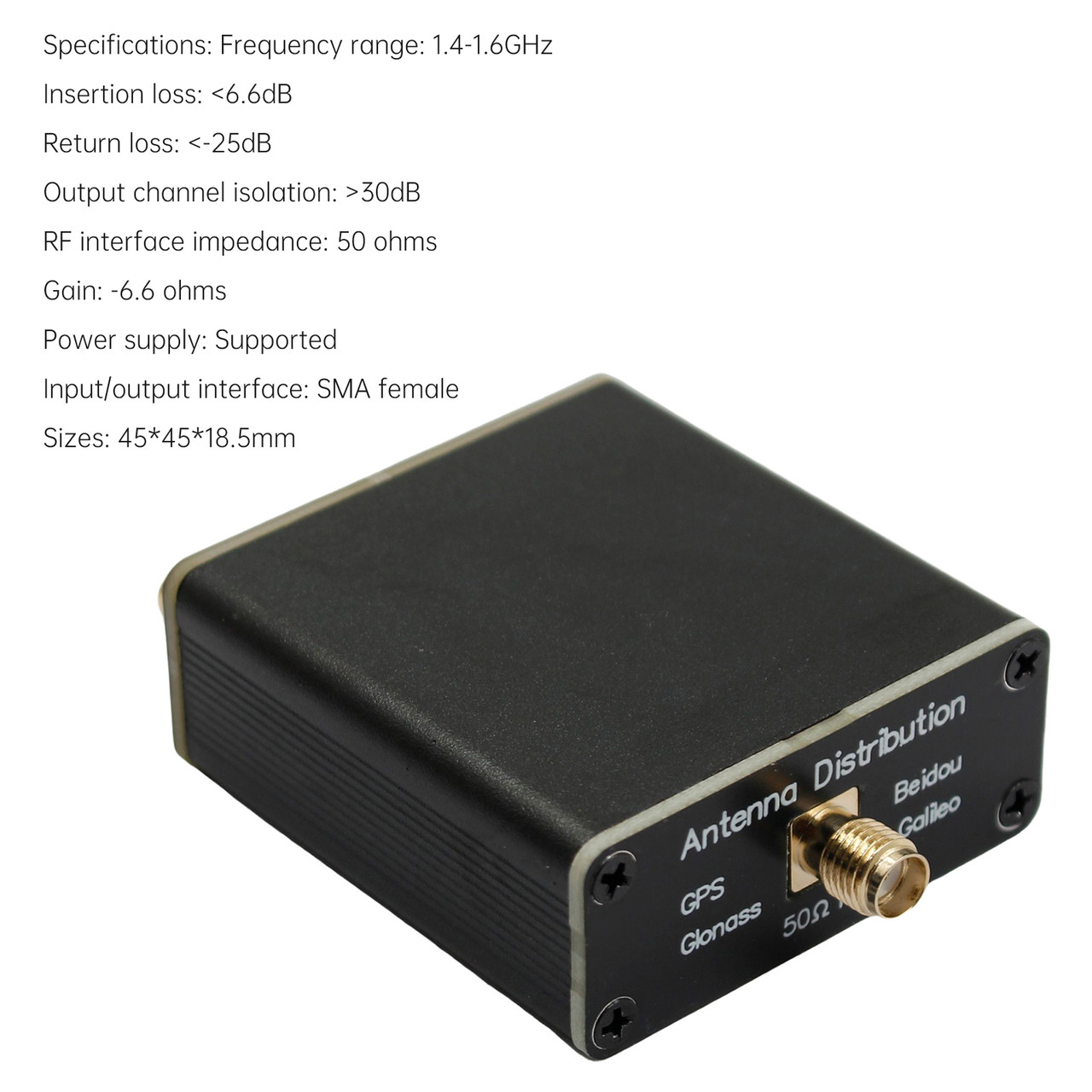

Specifications:
Frequency range: 1.4-1.6GHz
Insertion loss: <6.6dB
Return loss: <-25dB

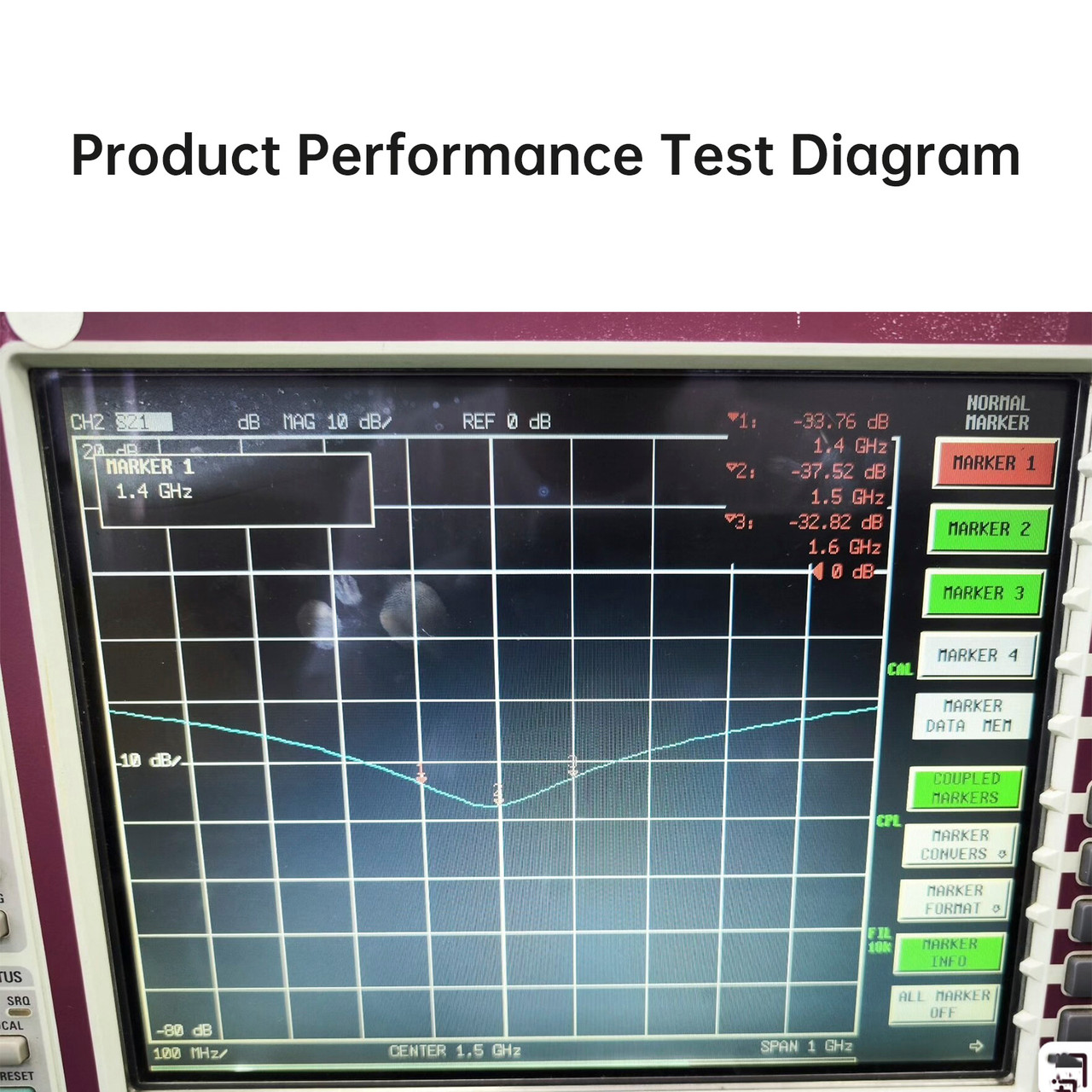

Output channel isolation: >30dB
RF interface impedance: 50 ohms
Gain: -6.6 ohms
Power supply: Supported

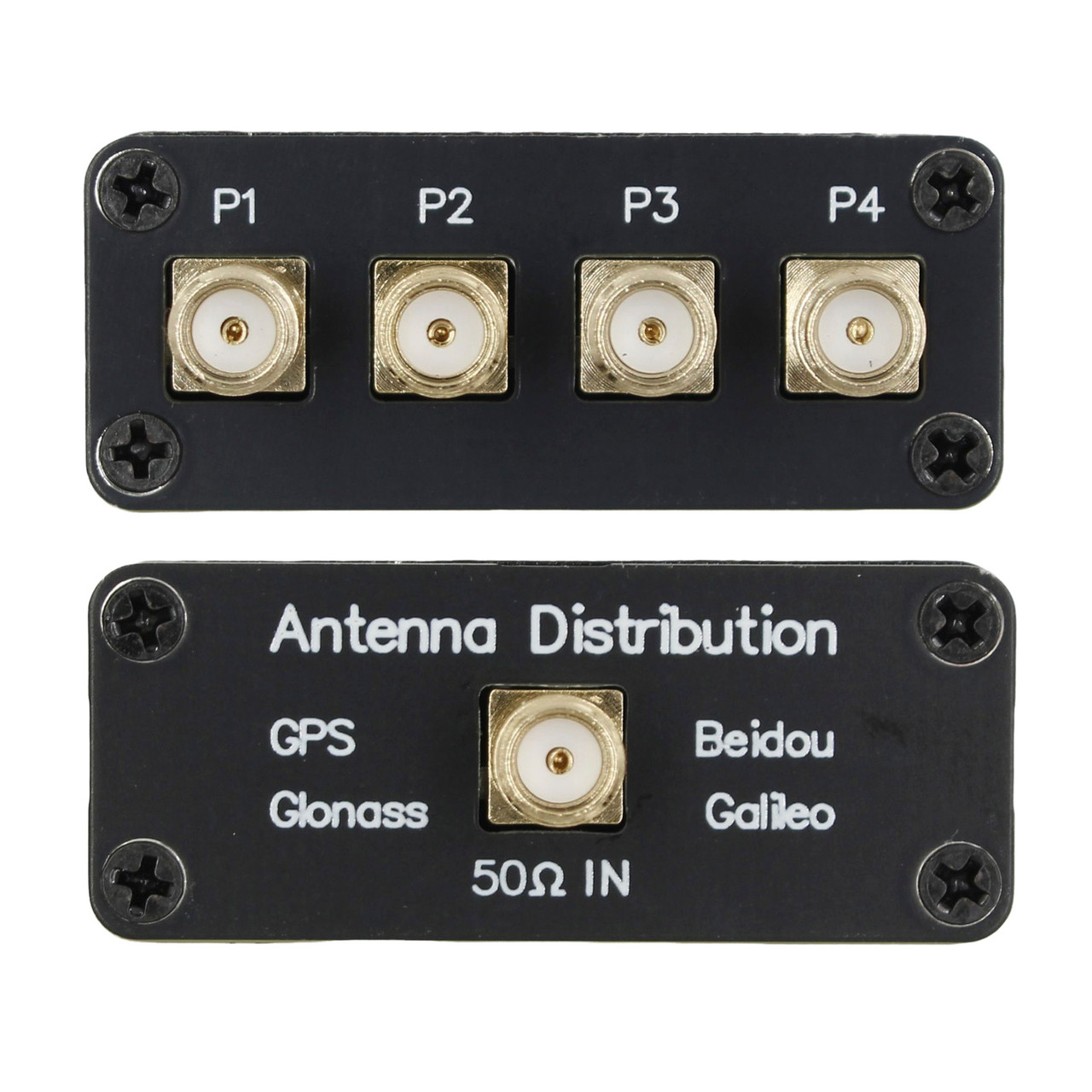

Input/output interface: SMA female
Sizes: 45*45*18.5mm
Package Included:
1x Antenna Power Splitter
