120A MPPT Solar Controller 12V-48V Photovoltaic RV Home Energy Storage Control SystemFeatures:
1) Smart chip with all-round safety protection. Overvoltage protection, short circuit protection, reverse connection protection, high temperature protection
TVS lightning protection, load overpower protection, waterproof protection IP21, current limiting charging protection, night anti-recoil protection
2) Fault LCD display, user-friendly design to easily diagnose system faults
3) Intelligent temperature control, fast heat dissipation. The body adopts metal shell and is equipped with high-speed intelligent fan,
smooth operation and better heat dissipation

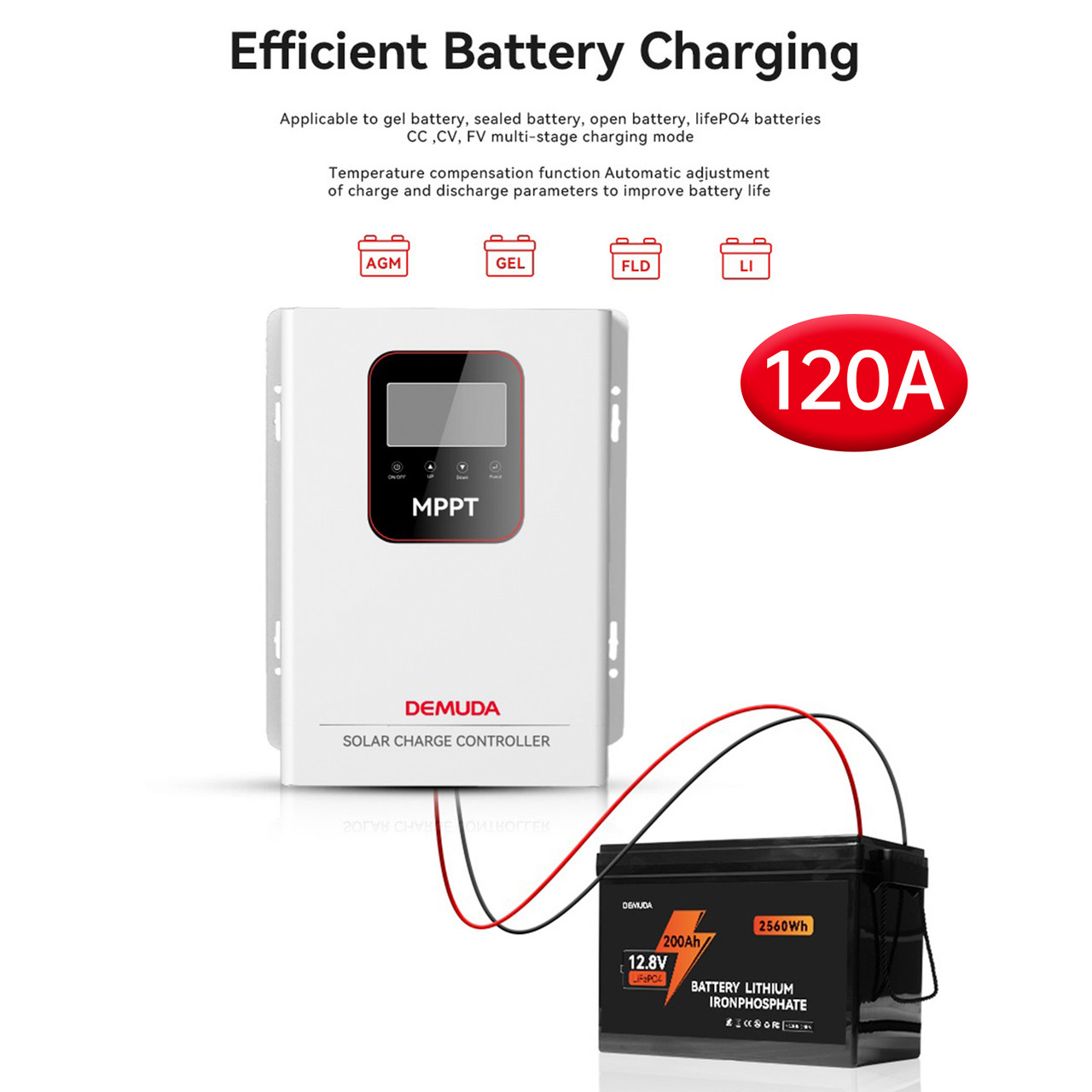

4) Intelligent matching of multiple batteries, efficient charging. Applicable to colloid batteries, sealed batteries, open batteries, lithium iron phosphate batteries. Constant current, constant voltage, floating charge multi-stage charging mode. Temperature compensation function automatically adjusts charging and discharging parameters to increase battery life
5) High input withstand voltage charging, reduce solar wiring wire specifications, and create an economical and efficient solar system for you
6) Application areas: outdoor RV, outdoor camping, yachts and ships, solar home systems...
RV system: Stable power supply during travel, making your journey more worry-free
Solar home system: Embrace a sustainable lifestyle and enjoy endless clean energy
Outdoor camping: Embrace the freedom of unlimited electricity
Ships and yachts: Powering sailing and life at sea with solar energy
Specifications:
Type: MPPT Controller
Color: White
System Voltage: 12V/24V/48V/Auto
Rated Charge Current: 120A
No-load loss: ¡Ü0.4W
Maximum solar input voltage: 180V (25¡ãC), 150V (-25¡ãC)
Battery voltage: 9 Vdc -64Vdc
Maximum power point voltage range: Battery voltage +2V~150VDC
Rated charging current: 120A
Rated load current: 30A
AC frequency: 50HZ/60HZ
Lithium battery activation: Supported
Conversion efficiency: ¡Ý99.9
Temperature compensation coefficient: -2mw/¡ãC/2V (default value)
Operating temperature: -10'C~+65¡æ
Protection level: IP21
Electromagnetic compatibility: Complies with EN61000.EN55022.EN55024
Package included:
1x MPPT Solar Controller
1 x User Manual
